Melamine Hydraulic Hot Press Machine for Melamine Urea Tableware Molding

MOQ : 1 Set

Delivery Time : 15 days after be paid

Pressing Time : 10-60 seconds adjustable

Packaging Details : Stretch Film

Price : Negotiable

Control System : PLC control with touch screen

Model Number : PH001

Machinetype : Hydraulic Press

Payment Terms : L/C,D/A,D/P,T/T

Pressure Range : 200TON-1000TON

Supply Ability : 50 Sets Per Month

Production Mode : Industrial Continuous Manufacturing

Certification : SGS

Heating Power : 25 - 45 kW

Place of Origin : GUANGDONG,CHINA.

Molding Method : Hydraulic Compression Molding

Brand Name : Dongxin

Maximum Pressure : 250 tons

Contact Now

Melamine Hydraulic Hot Press Machine for Melamine Urea Tableware Molding
Product Overview

The Melamine Press Machine is a four-column hydraulic hot compression molding equipment specifically designed for melamine formaldehyde powder, urea formaldehyde powder, and amino molding compounds. Integrating precise hydraulic driving, constant-temperature heating plates, and PLC intelligent control systems, it completes material hot-press curing, exhaust, and forming in a single cycle to produce high-quality melamine tableware and amino plastic products.

Core Advantages
Stable Hydraulic Performance

Heavy-duty four-column frame structure resists deformation under long-term high-tonnage conditions, ensuring uniform pressure distribution and reducing defective rates.

Intelligent PLC Touch Control

Freely configure pressing force, heating temperature, holding time, exhaust cycles and distance with automatic operation cycles.

Precise Constant-Temperature Heating

Even heating plate temperature ensures complete melamine powder curing and improves tableware surface gloss.

Strong Mold Compatibility

Compatible with various melamine tableware molds featuring quick mold replacement for flexible multi-SKU production.

Complete Safety Protection

Includes emergency stop button, safety sensors, and over-pressure automatic relief functions for operator and machine protection.

Low Maintenance Cost

Utilizes premium brand hydraulic valves, oil pumps, and electrical components for long service life and easy maintenance.

Melamine Hydraulic Hot Press Machine for Melamine Urea Tableware Molding
Main Product Structure
  • Four-column heavy-duty main frame
  • Hydraulic power unit (oil pump, solenoid valve, oil cylinder)
  • Constant-temperature heating plate assembly
  • PLC & touch screen control cabinet
  • Safety protection assembly & emergency stop device
  • Mold positioning platform
Technical Specifications
ItemSpecification
Model200T / 250T / 300T / 400T (customizable)
Total Pressing Force200-400 Ton
Heating Plate Size700*700mm / 800*800mm / 900*800mm (custom)
Heating Temperature Range120-180℃ adjustable
Working Stroke350-450mm
Control ModePLC + Touch Screen
Power Supply380V 50/60Hz 3-phase
Cycle Time25-45s per molding cycle (depends on products)
Weight6500-9000 KG
Optional ConfigurationAuto feeding device, pre-matching with automatic weighing machine
Customization Options
  • Tonnage Customization: Support non-standard tonnage from 150T-500T according to product requirements
  • Heating Plate Size: Custom dimensions to match existing molds
  • Function Customization: Add automatic feeding, auto ejecting, and linkage with preheating and weighing systems
  • Voltage & Frequency: Custom 380V/415V, 50Hz or 60Hz for different country power grids
  • Logo & Appearance: Custom brand logo and painting color options
  • Mold Matching Service: Recommended matched melamine molds with press machine
Application Scope
  • Mass production of melamine tableware: plates, bowls, cups, spoons, trays, and food containers
  • Molding for urea formaldehyde powder products: toilet seats, electrical amino plastic parts
  • Forming of MMC / UMC amino molding compound and melamine glazing powder
  • Complete melamine tableware production line integration
Production & Quality Assurance

Machine frames utilize thick steel plate welding with stress-relief treatment. Core hydraulic and electrical components feature premium brand parts. Each machine undergoes comprehensive assembly, wiring, hydraulic debugging, and high-pressure load testing before factory release.

Quality Inspection Process
  • Raw material incoming inspection for steel, hydraulic and electrical components
  • Full-load pressure testing, temperature uniformity verification, and continuous cycle aging tests
  • Test video and photo documentation provided before shipment
  • CE-compliant safety standards with 12-18 months warranty period
Melamine Hydraulic Hot Press Machine for Melamine Urea Tableware Molding

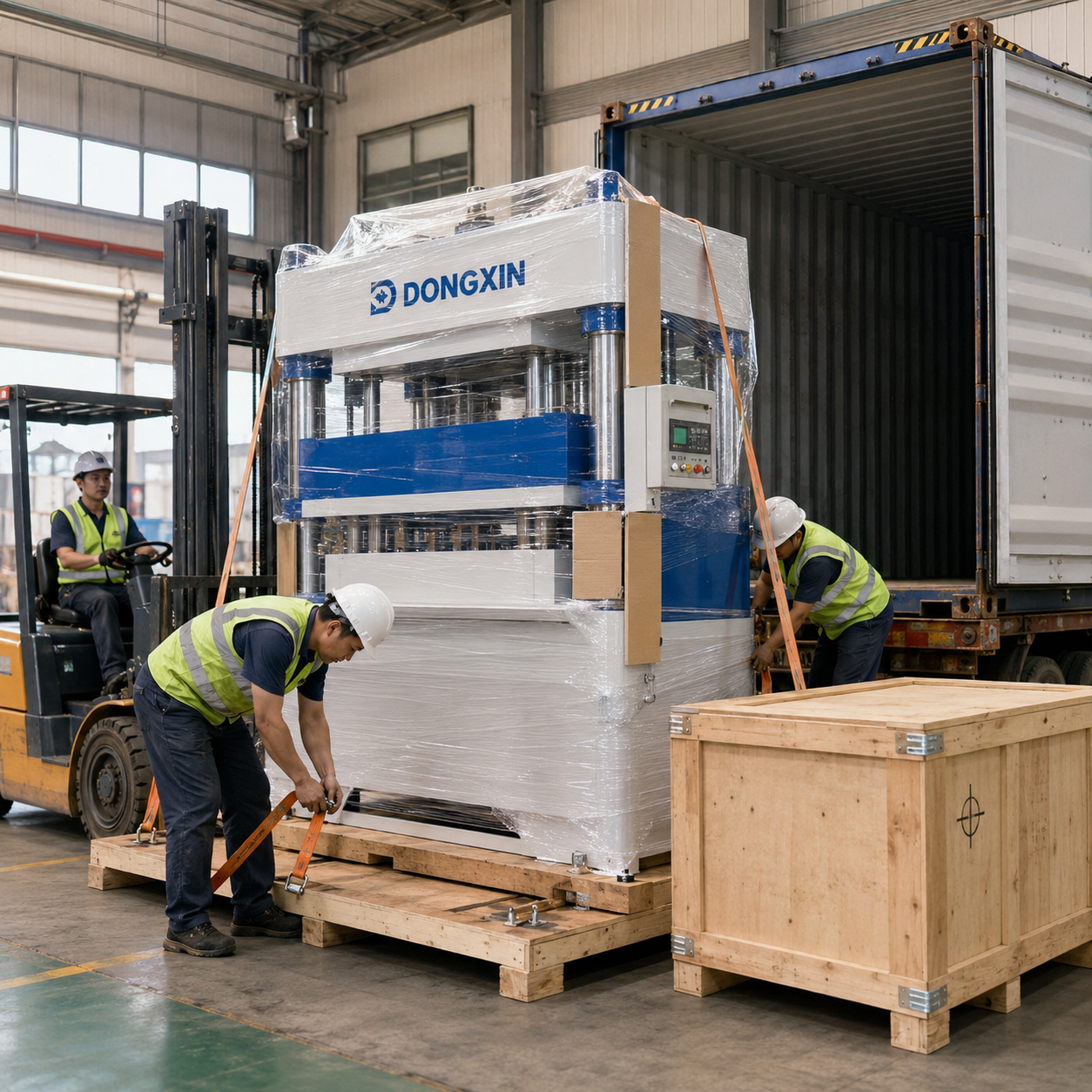

Packaging & Shipping
  • Main machine wrapped with anti-rust plastic film in fumigation-free wooden cases
  • Spare parts, operation manual, and electrical drawings in separate wooden boxes
  • Suitable for sea freight long-distance transportation
  • FOB / CIF shipment options available
Frequently Asked Questions
What material can this melamine press machine process?
It works well for melamine formaldehyde molding powder, MMC, UMC, urea formaldehyde powder and other amino molding compounds for hot compression molding.
How to choose suitable tonnage for my melamine tableware factory?
Small tableware such as bowls and spoons typically require 200-250T; large plates and multi-cavity molds recommend 300-400T. Share your product specifications and mold drawings for professional recommendations.
Can this machine connect with other equipment of melamine production line?
Yes. It can be integrated with automatic weighing batching machines, preheating machines, and polishing machines to create semi-automatic or fully-automatic production lines.
Do you provide overseas installation guidance?
We supply detailed English operation manuals and instructional videos. Overseas on-site installation and training services are available upon request with additional service costs.
What is your after-sales support?
12-18 months warranty for core components. We offer online technical support, spare parts supply, and remote troubleshooting guidance via video conferencing.
